Product detailed description

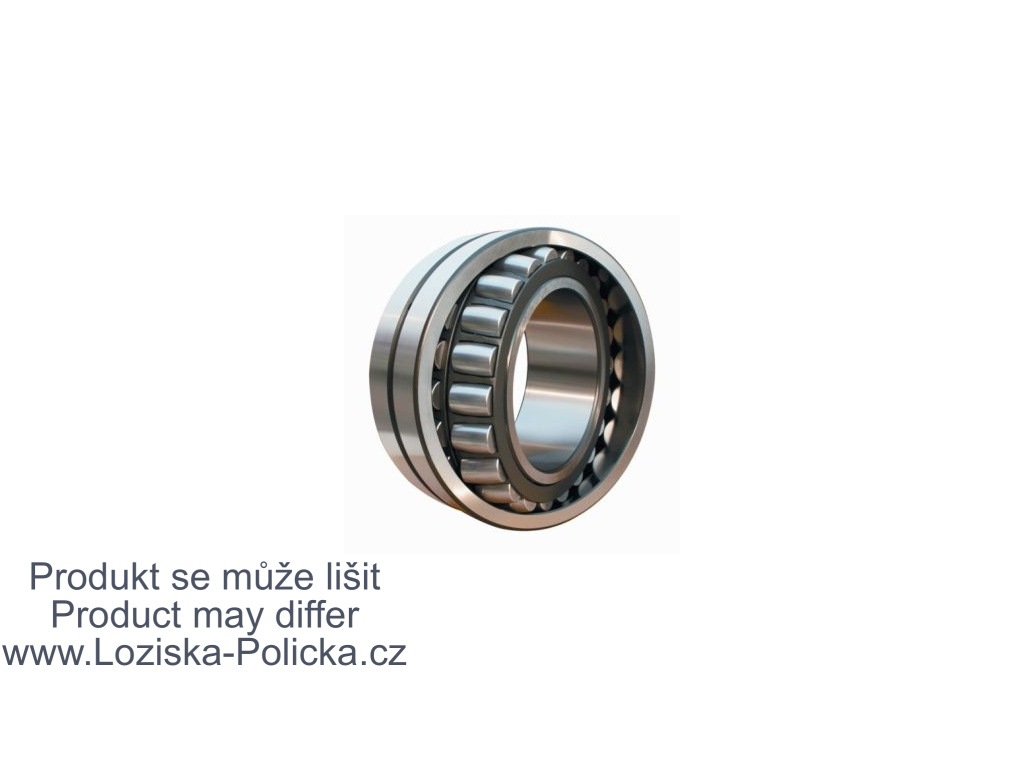

The FAG 21304-E1-XL-TVPB is a spherical roller bearing that offers enhanced performance and durability compared to standard spherical roller bearings. Its design and construction make it suitable for demanding applications requiring high load capacity and reliability.
Key Features:
- Design: Solid inner ring with two rows of symmetrical rollers and a solid outer ring featuring a concave, spherical raceway.
- Load Capacity: High radial and axial load capacity, accommodating both radial and axial forces in both directions.
- Alignment Compensation: Ability to compensate for alignment errors and shaft deflections, ensuring smooth operation.
- Lubrication: Equipped with lubrication grooves and three holes (W33) for effective lubrication.
- Cage Type: Plastic molded cage (P) made from glass-fiber reinforced polyamide, providing durability and low friction.
- Precision: Standard precision for reliable performance.
- Temperature Range: Suitable for temperatures up to 120°C.
Technical Specifications:
- Inner Diameter (d): 20 mm
- Outer Diameter (D): 52 mm
- Width (B): 15 mm
- Weight: 0.16 kg
- Radial Static Load Rating (C₀r): 33,000 N
- Radial Dynamic Load Rating (Cᵣ): 41,000 N
- Limiting Speed (nₖ): 16,000 rpm
- Reference Speed (n₀): 9,700 rpm
The FAG 21304-E1-XL-TVPB is part of the X-life series, indicating it offers improved performance and longer service life compared to standard bearings. This is achieved through optimized internal construction, higher-quality materials, and enhanced manufacturing processes.
