Product detailed description

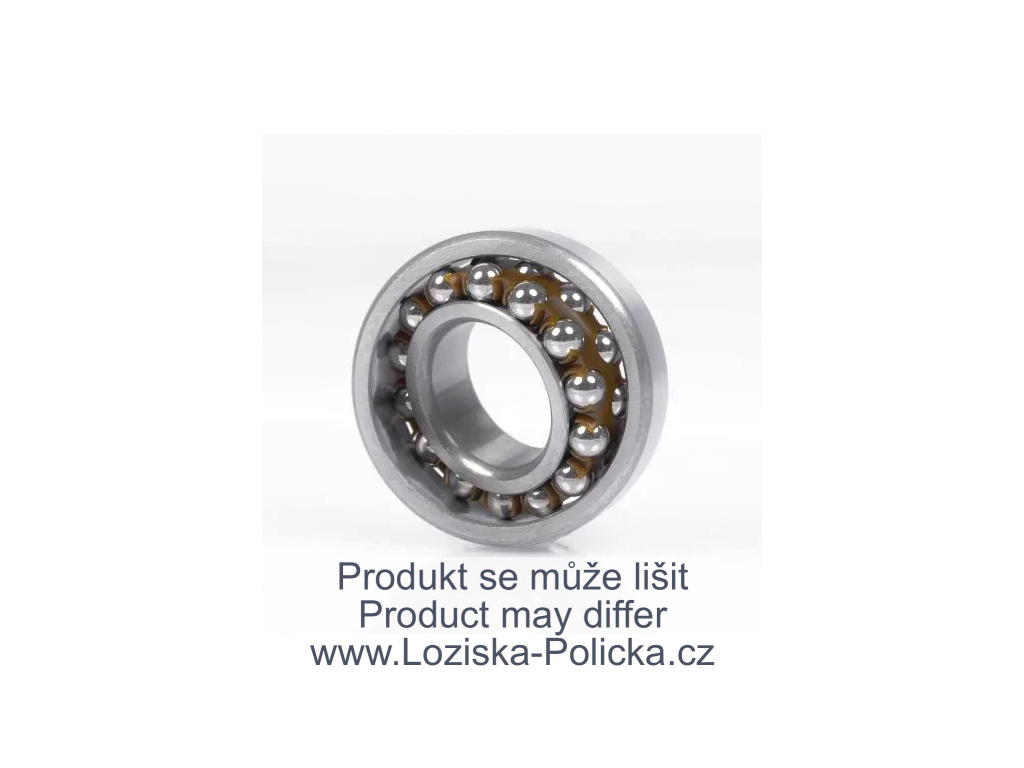

The FAG 2216-TVH-C3 is a double-row self-aligning ball bearing that offers exceptional performance in applications where misalignment or shaft deflections are present. Its design features a spherical outer ring raceway, allowing the bearing to self-align and accommodate angular misalignments up to 4 degrees.
Key Features:
-
Double-Row Design: Provides increased radial load capacity compared to single-row bearings.
-
Self-Aligning Capability: The spherical outer ring raceway allows the bearing to compensate for misalignments, reducing the risk of premature failure.
-
Solid Cage: Constructed with a glass-fiber reinforced polyamide 66 cage, ensuring durability and resistance to wear.
-
C3 Radial Internal Clearance: Offers a larger than normal radial internal clearance, accommodating thermal expansions and shaft deflections.
Technical Specifications:
-
Bore Diameter (d): 80 mm
-
Outer Diameter (D): 140 mm
-
Width (B): 33 mm
-
Dynamic Load Rating (Cr): 49,500 N
-
Static Load Rating (Cor): 19,800 N
-
Limiting Speed (nG): 5,300 rpm
-
Reference Speed (nB): 5,400 rpm
-
Cage Material: Glass-fiber reinforced polyamide 66
-
Seal Type: Open (no seals)
-
Precision Class: Standard (ABEC 1)
-
Lubrication: Standard lubrication with oil preservative
-
Weight: Approximately 2.01 kg
This bearing is ideal for applications such as electric motors, conveyors, and other machinery where misalignment and shaft deflections are common. Its robust construction and self-aligning features contribute to extended service life and reliable operation.
