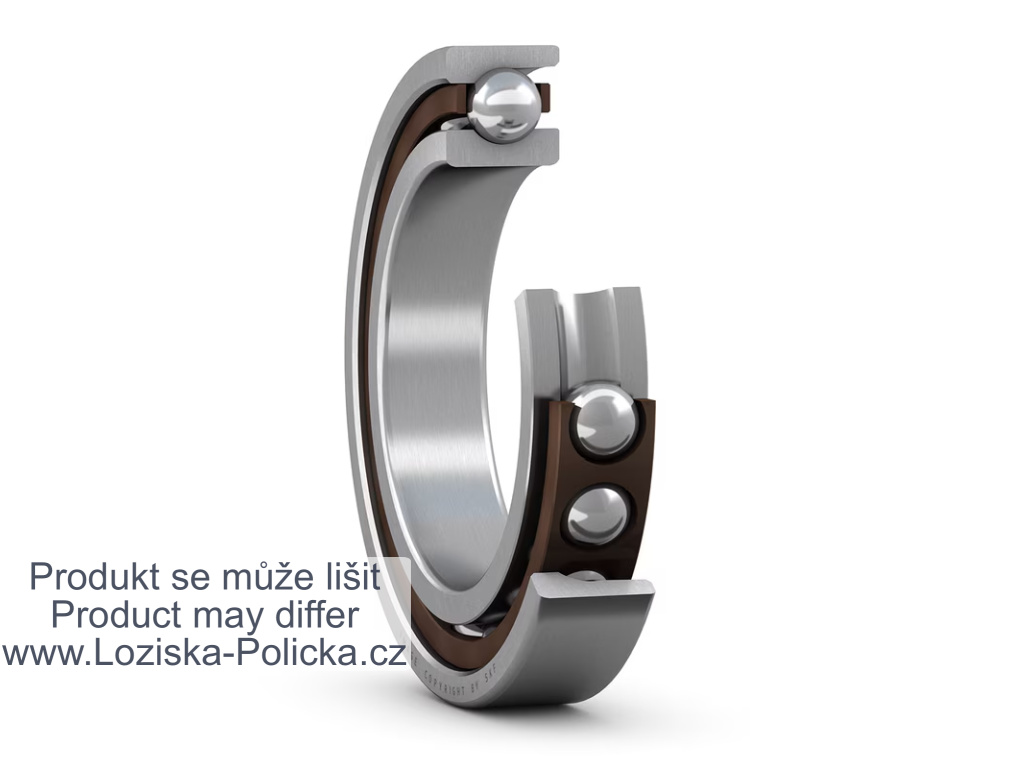

The SKF 7220 C/P4 bearing is a super-precision, high-capacity, single-row angular contact ball bearing designed for high-load capacity and relatively high-speed operation. It is best suited for heavier loads compared to equivalent SKF B and E design high-speed bearings. This bearing offers very high running accuracy and load-carrying capacity.
Technical Specifications:
- Bore Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 34 mm
- Contact Angle: 40°
- Basic Dynamic Load Rating: 143 kN
- Basic Static Load Rating: 134 kN
- Reference Speed: 4,500 rpm
- Limiting Speed: 4,500 rpm
- Cage Material: Thermoplastic
- Preload: 409 N
- Maximum Temperature: 100°C
- Minimum Temperature: -40°C
This bearing is suitable for applications requiring high-speed operation and the ability to accommodate both radial and axial loads acting simultaneously, where the axial load acts in one direction only. It is more suitable than deep groove ball bearings for supporting large axial forces acting in one direction. The 7220 C/P4 bearing can operate at high speeds and, depending on the variant, even very high speeds. It features a normal contact (two-point contact) design and is universally matchable, allowing for effective load sharing when used in arrangements. The bearing is made from bearing steel and does not include sealing or lubrication.
For more detailed information, please refer to SKF's official product page.
