Product detailed description

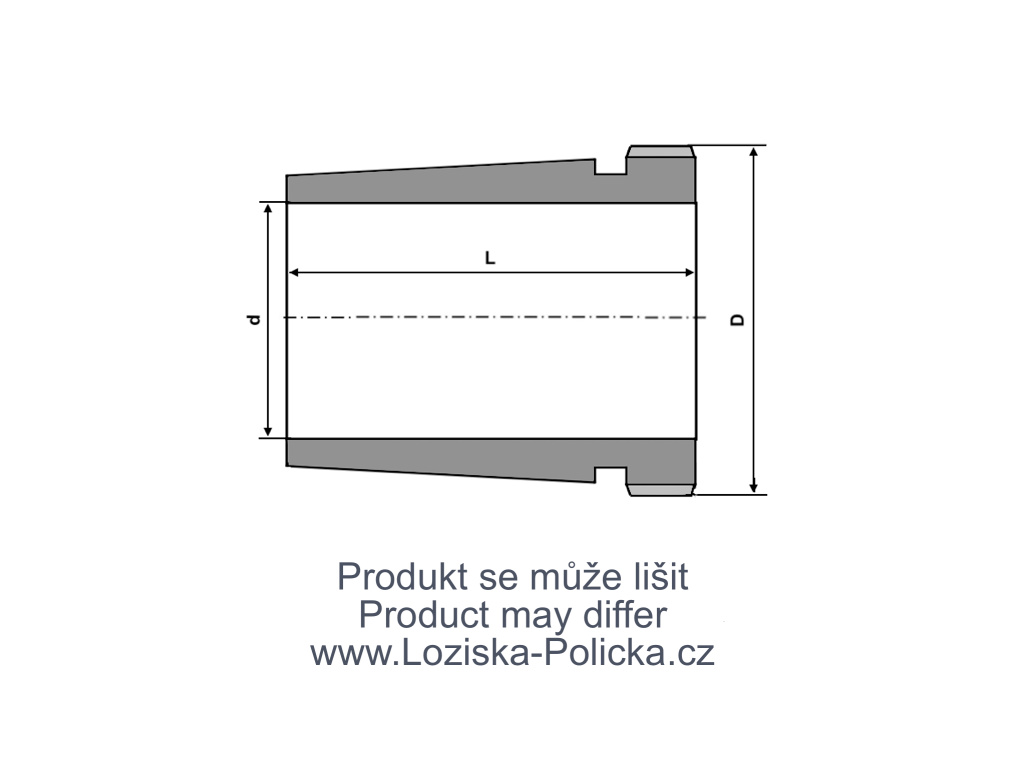

The ISB Bearing AHX 317 is a high-quality withdrawal sleeve engineered to facilitate the mounting of bearings with a tapered bore onto the cylindrical seat of stepped shafts. This component ensures secure and precise positioning of bearings, thereby enhancing the overall performance and longevity of machinery.
Technical Specifications:
- Taper Ratio: 1:12
- Thread Size: M95x2 mm
- Overall Length: 56 mm
- Compatible Bearing Number: 22217
- Lock Nut Number: KM19
- Lock Washer Number: MB16
- Hydraulic Nut Number: HMV 19 E
- Weight: 0.97 lbs (approximately 0.44 kg)
This withdrawal sleeve is designed to provide a reliable and efficient solution for bearing mounting applications, ensuring optimal performance and durability in various industrial settings.
