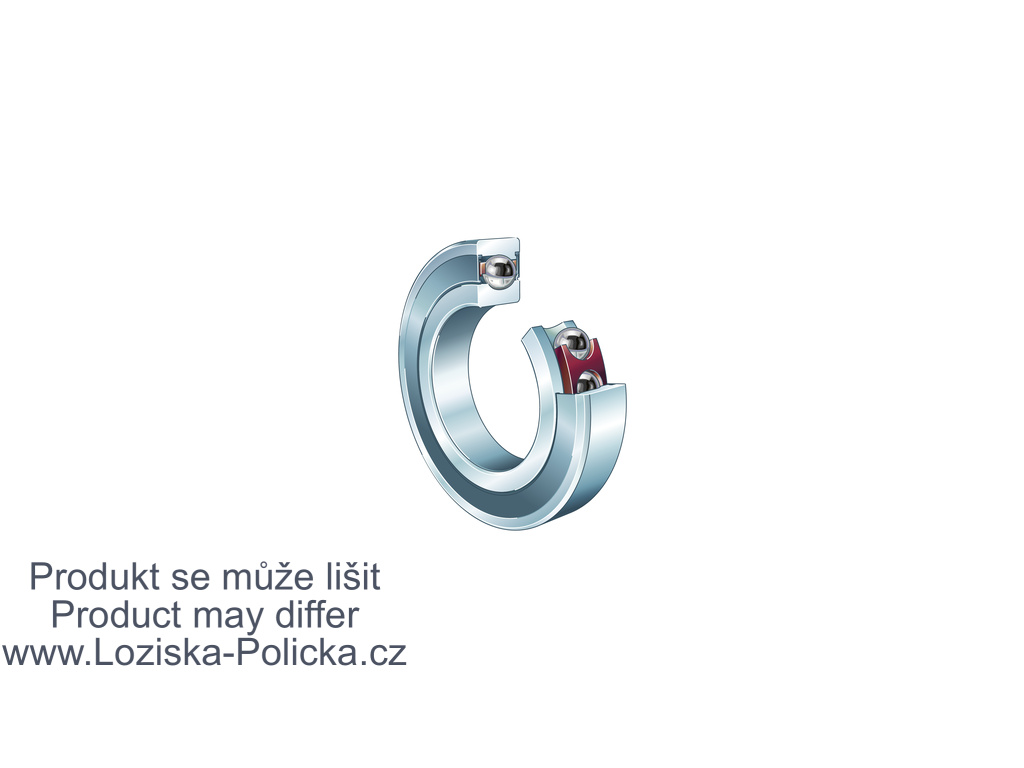

Bearing B7007-E-2RSD-T-P4S-UL FAG
Related products
Product detailed description
The FAG B7007-E-2RSD-T-P4S-UL is a super-precision angular contact ball bearing engineered for high-speed spindle applications. It combines high load-carrying capacity with exceptional rigidity, making it suitable for medium-speed applications. This bearing is commonly used in main spindles of machine tools.
Technical Specifications:
-
Dimensions:
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 62 mm
- Width (B): 14 mm
-
Load Ratings:
- Basic Dynamic Load Rating (Cr): 18,400 N
- Basic Static Load Rating (C0r): 9,200 N
- Fatigue Load Limit (Cur): 970 N
-
Speed Ratings:
- Limiting Speed for Grease Lubrication (nG): 22,000 rpm
- Limiting Speed for Oil Lubrication (nOil): 38,000 rpm
-
Design Features:
- Contact Angle (α): 25°
- Sealing: Non-contact lip seals (2RSD) on both sides
- Cage Type: Textile laminated phenolic resin cage (T)
- Precision Class: P4S (higher than P4)
- Preload: Universal design with light preload (UL)
-
Materials:
- Balls: Steel (100Cr6)
- Inner and Outer Rings: Steel (100Cr6)
-
Temperature Range:
- Suitable for operating temperatures up to 100°C
This bearing is designed for universal pairing, allowing it to be combined with other bearings of the same type for different arrangements, such as tandem, O, or X configurations, to support axial loads in one or both directions. The non-contact lip seals provide effective sealing while minimizing friction, and the phenolic resin cage ensures high-speed performance and durability. The P4S precision class ensures high running accuracy, making it suitable for applications requiring high guidance accuracy and suitability for high speeds.
