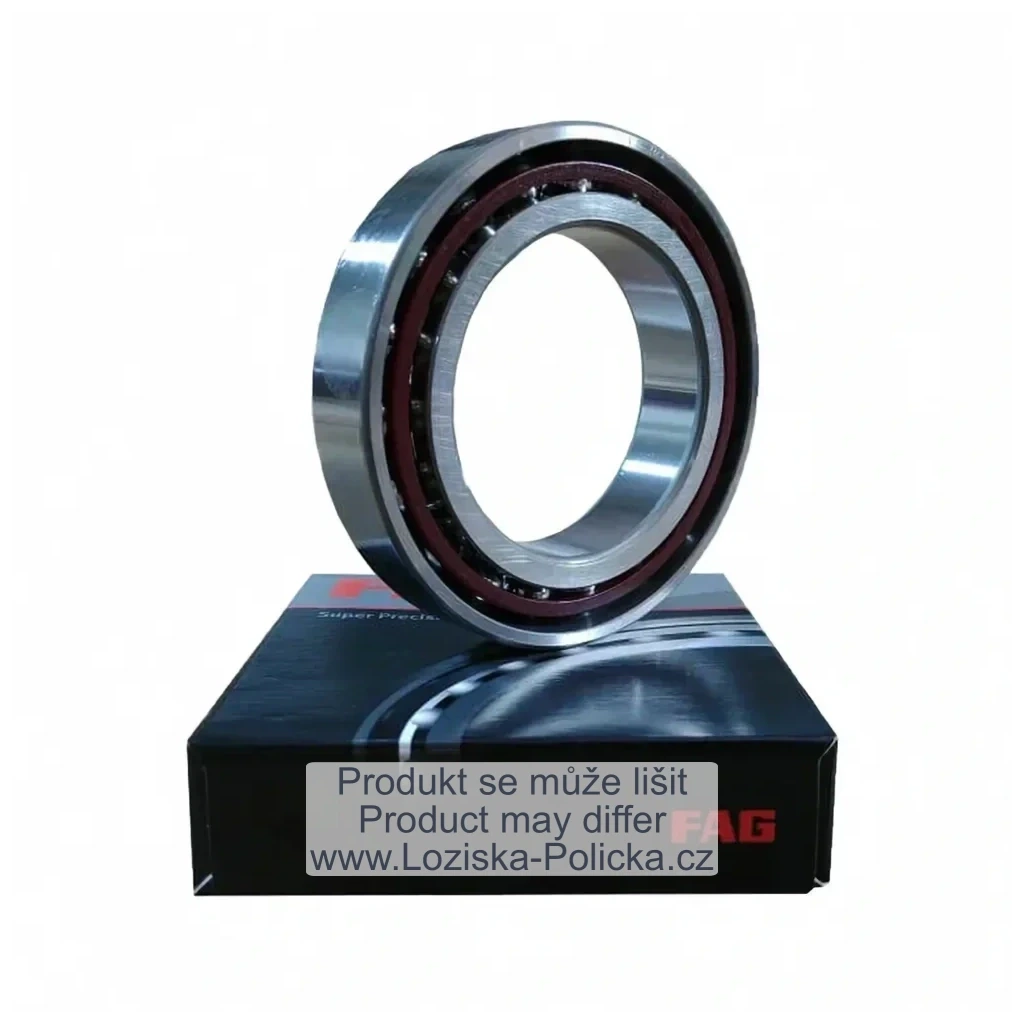

Bearing B71922-E-T-P4S-UL FAG



Related products

The ZKL VS 1293 is a high-quality radial ball bearing designed for demanding industrial applications. With its robust construction and precision engineering, it ensures reliable...

The NTN NUTR203/3AS is a high-performance yoke-type track roller bearing designed for demanding applications. It features a full complement of cylindrical rollers, a spherical...

The STEYR NJ 2312 is a single-row cylindrical roller bearing designed for high radial load applications. Its separable design and pressed steel cage make it suitable for various...

The FAG QJ206-MPA is a high-performance four-point contact ball bearing designed for precise and reliable operation in various mechanical systems.

The FAG 2212-K-TVH-C3 is a self-aligning ball bearing designed for applications requiring high load capacity and self-aligning capabilities. It features a polyamide cage and is...

The 6203 2RS SKF bearing is a ball of radial single -row bearing with dimensions of 17 x 40 x 12 mm, which is made by the Swedish company SKF. This bearing is characterized by...

The ZKL 22315 M is a double-row spherical roller bearing designed to handle heavy radial and axial loads in both directions. Its self-aligning capability accommodates shaft...

The SKF 51211 is a single direction thrust ball bearing designed to support axial loads in one direction. It features a 55 mm bore diameter, 90 mm outer diameter, and 25 mm...

The 6202 FAG deposit is one of the most popular variants of ball bearings with a deep groove produced by the German company FAG. It has standard dimensions with an outer...

The NUP 2314 M DKF is a double-row, self-aligning cylindrical roller bearing designed for applications requiring high radial load capacity and self-alignment capabilities. It...

The INA NKXR 15 A is a combined needle roller and thrust ball bearing designed for single-direction axial load applications. It features a compact design without an inner ring,...

The KOYO 7213 B is a single-row angular contact ball bearing designed for high-speed and high-precision applications. It features a 40° contact angle, enabling it to handle both...

The DKF NJ 216 M is a single-row cylindrical roller bearing designed to handle high radial loads. Its separable design allows for easy assembly and disassembly, making it...

The INA 3008-2RS is a high-quality double-row angular contact ball bearing, designed for applications requiring high load capacity and durability. It features dual rubber seals...
Product detailed description
The B71922 ETP4SUL TIMKEN is a single-row, angular contact ball bearing engineered for high-precision spindle applications. This bearing is designed to provide high rigidity and load-carrying capacity, making it ideal for medium-speed operations.
Technical Specifications:
-
Dimensions:
- Bore Diameter (d): 110 mm
- Outside Diameter (D): 150 mm
- Width (B): 20 mm
-
Load Ratings:
- Basic Dynamic Load Rating (Cr): 58,000 N
- Basic Static Load Rating (C0r): 44,500 N
- Fatigue Load Limit (Cur): 4,150 N
-
Speed Limits:
- Limiting Speed for Grease Lubrication (nG Grease): 8,000 rpm
- Limiting Speed for Oil Lubrication (nG Oil): 12,000 rpm
-
Contact Angle:
- 25°
-
Temperature Range:
- Minimum Operating Temperature (Tmin): -30°C
- Maximum Operating Temperature (Tmax): 100°C
-
Preload Options:
- Light Preload (FV L): 455 N
- Medium Preload (FV M): 1,642 N
- Heavy Preload (FV H): 3,475 N
-
Axial Rigidity:
- Light Preload (ca L): 225 N/µm
- Medium Preload (ca M): 364 N/µm
- Heavy Preload (ca H): 493 N/µm
-
Cage Material:
- Laminated Fabric Cage (T)
-
Lubrication:
- Without Lubricant
-
Sealing:
- Without Sealing
-
Arrangement:
- Single Bearing
-
Tolerance Class:
- P4S (better than P4 to DIN 620)
This bearing is suitable for applications requiring high guidance accuracy and suitability for high speeds, such as main spindles in machine tools. Its universal design allows for pairing in various arrangements to support axial loads in one or both directions.
