Bearing B7203-C-T-P4S-UL FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

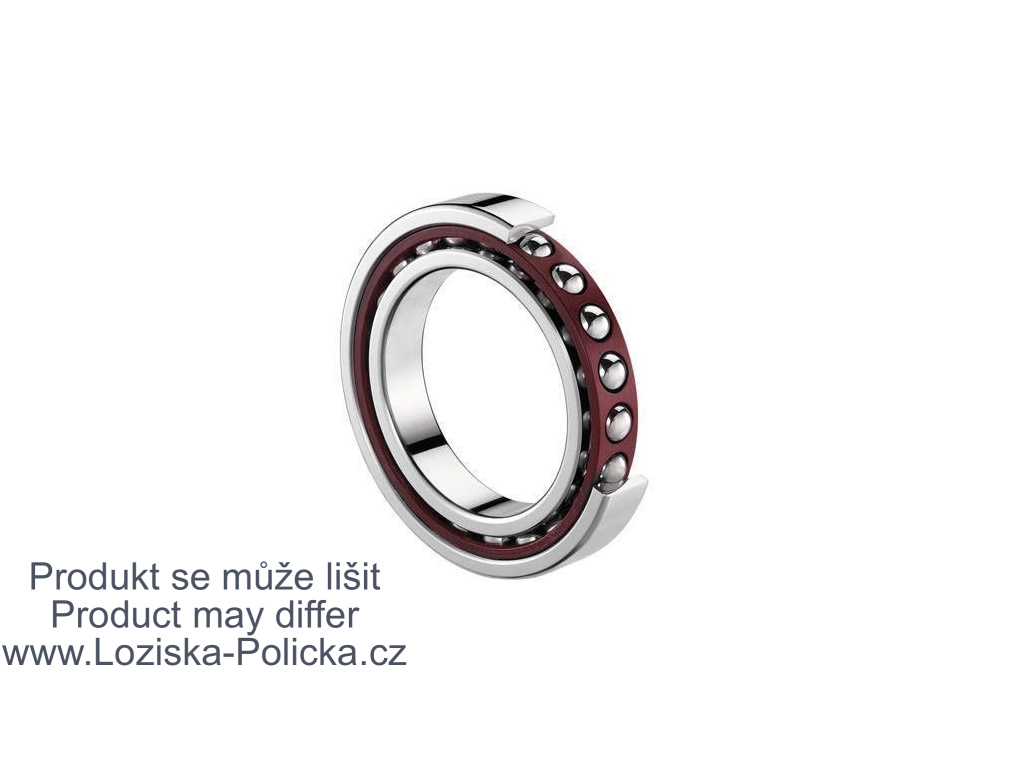

The FAG B 7203 CTP4SUL is a super-precision single-row angular contact ball bearing, specifically engineered for high-speed and high-precision applications such as machine tool spindles.
Key Features:
-
Design and Construction:
- Single-row angular contact ball bearing with a contact angle of 15 degrees.
- Hybrid design incorporating ceramic balls to reduce friction and enhance rigidity.
- Solid inner and outer rings with a ball-and-cage assembly featuring a solid window cage.
- Universal design suitable for pairing in various arrangements (O, X, or tandem).
-
Dimensions:
- Inner diameter (d): 17 mm
- Outer diameter (D): 40 mm
- Width (B): 12 mm
- Weight: 0.056 kg
-
Load Ratings:
- Radial dynamic load rating (Cr): 13,000 N
- Radial static load rating (C0r): 5,600 N
-
Speed Ratings:
- Limiting speed with grease lubrication: 50,000 rpm
- Limiting speed with oil lubrication: 75,000 rpm
-
Precision and Tolerances:
- Manufactured to P4S precision class, exceeding the standard P4 class.
- Suitable for applications requiring high guidance accuracy and suitability for high speeds.
-
Lubrication and Sealing:
- Standard lubrication; no seals included.
- Cage type: TB (textile laminated phenolic resin), suitable for long-term operation at temperatures up to 100°C.
This bearing is particularly suitable for use in high-speed spindles, where reduced friction and increased rigidity are essential for optimal performance. Its universal design allows for flexible pairing in various configurations to meet specific application requirements.
