Product detailed description

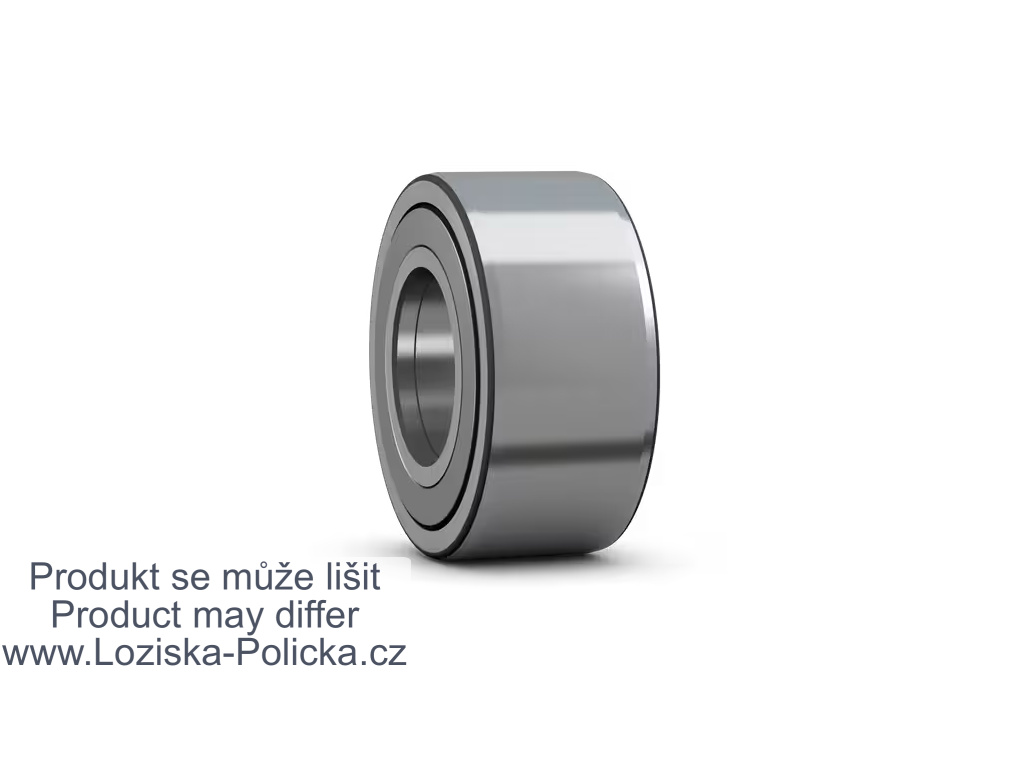

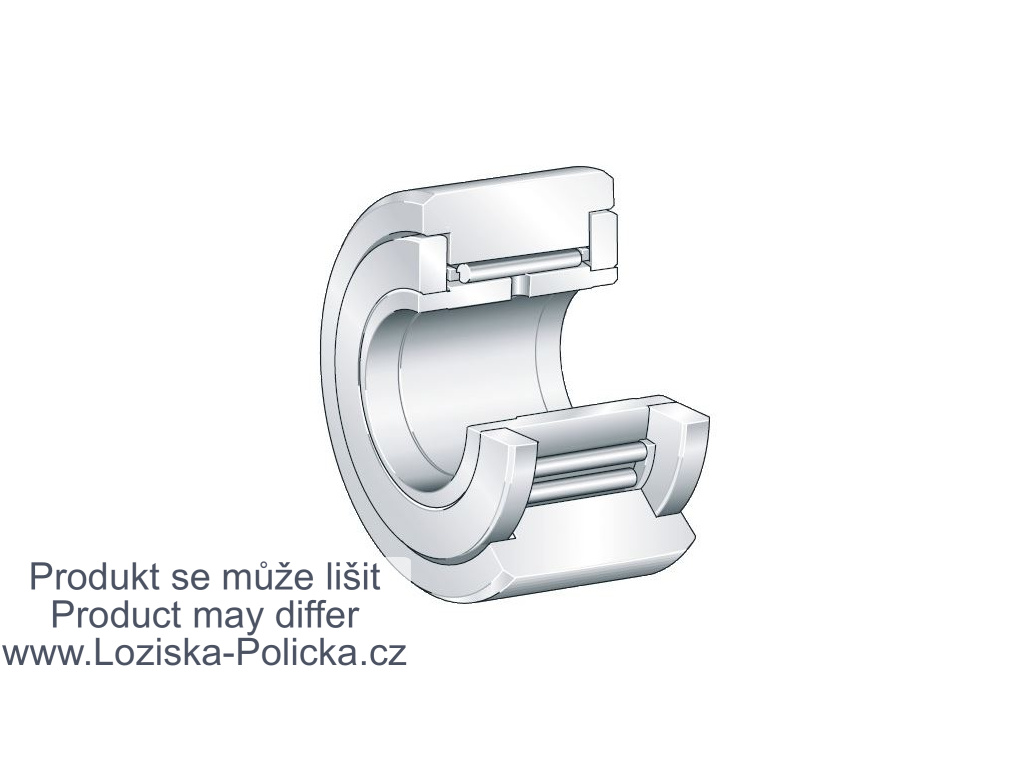

The INA NATR-50 PP-X is a yoke-type track roller bearing engineered for demanding applications requiring high radial load capacity. Its robust construction and precise design make it suitable for various industrial uses, including conveyor systems, linear guidance systems, and cam mechanisms.
Key Features:
- Design: Yoke-type track roller with axial guidance, featuring axial plain washers on both sides.
- Outer Ring: Thick-walled with a crowned running surface to accommodate high radial loads.
- Sealing: Equipped with lip seals on both sides to protect against contaminants and retain lubrication.
- Lubrication: Designed for grease lubrication; includes a relubrication feature for maintenance.
Technical Specifications:
- Dimensions:
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 90 mm
- Width (B): 32 mm
- Load Ratings:
- Basic Dynamic Load Rating (Cₖ): 31,000 N
- Basic Static Load Rating (Cₖ₀): 59,000 N
- Speed:
- Limiting Speed: 1,200 rpm
- Temperature Range:
- Permissible Operating Temperature: -30°C to +100°C
- Weight:
- Approximately 0.98 kg
This bearing is designed to operate efficiently under high radial loads and is suitable for applications where axial loads due to misalignment are present. The inclusion of lip seals enhances its durability by protecting against contaminants and retaining lubrication, thereby extending service life.
For optimal performance, ensure proper installation and regular maintenance, including relubrication as needed. Always consult the manufacturer's guidelines for specific application requirements.
