Bearing NU 217 ECML/C4H SKF
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

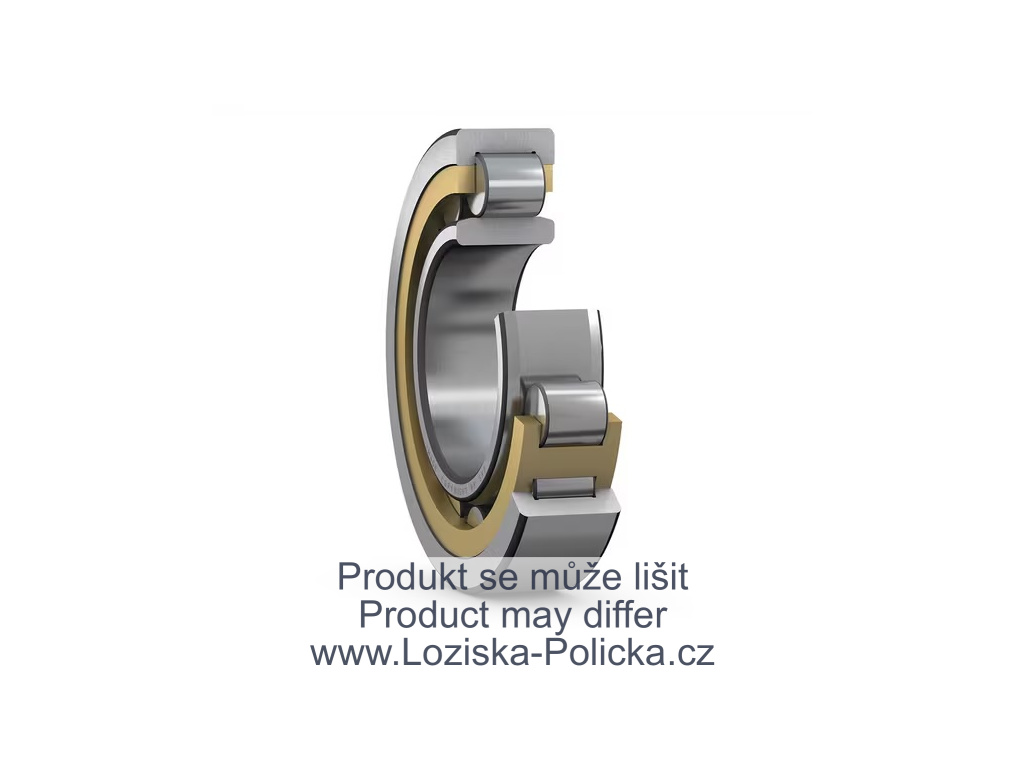

The SKF NU 217 ECML/C4H is a high-performance single-row cylindrical roller bearing engineered for applications requiring high radial load capacity and high-speed operation. Its design and features make it suitable for various industrial applications, including heavy machinery and equipment.
Key Features:
-
Design: Single-row cylindrical roller bearing with two integral flanges on the outer ring and no flanges on the inner ring, facilitating axial displacement in both directions.
-
Cage: Machined brass cage, window-type, inner or outer ring centered (depending on bearing design).
-
Performance Class: SKF Explorer, indicating high performance and reliability.
Technical Specifications:
-
Dimensions:
- Bore diameter (d): 85 mm
- Outside diameter (D): 150 mm
- Width (B): 28 mm
-
Load Ratings:
- Basic dynamic load rating (C): 190 kN
- Basic static load rating (C₀): 200 kN
- Fatigue load limit (Pu): 25 kN
-
Speeds:
- Reference speed: 4,800 r/min
- Limiting speed: 8,000 r/min
-
Clearance:
- Radial internal clearance: C4
-
Mass:
- Weight: 2.16 kg
Additional Information:
-
Axial Displacement Capability: Accommodates axial displacement in both directions.
-
Mounting: Separable design facilitates mounting and enables the bearing components to be interchanged.
-
Lubrication: No relubrication feature; lubrication is required during installation.
-
Sealing: Without sealing; external sealing is recommended to prevent contamination.
For optimal performance and longevity, it is essential to ensure proper installation, lubrication, and sealing of the bearing in its operating environment.
