Bearing NUTR 20X INA
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

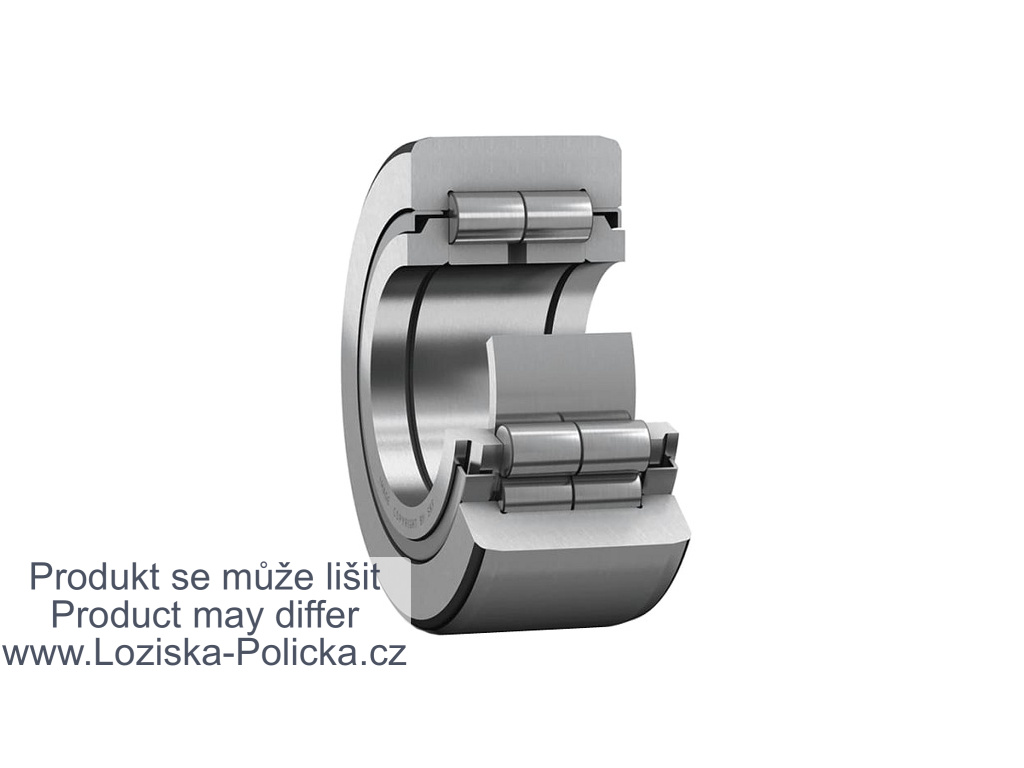

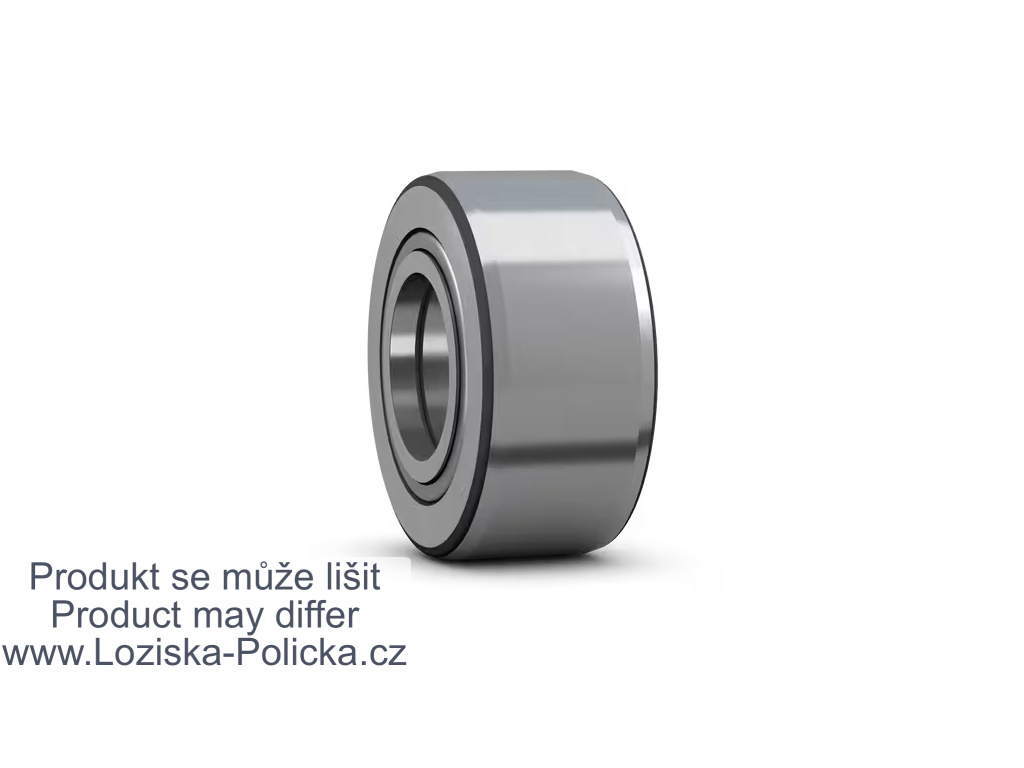

The INA NUTR 20X is a yoke-type track roller bearing engineered for heavy-duty applications. It consists of a cylindrical outer ring profile and double-row cylindrical rollers, providing high load-carrying capacity and durability.
Technical Specifications:
-
Dimensions:
- Bore Diameter (d): 20 mm
- Outer Diameter (D): 47 mm
- Width (B): 25 mm
- Flange Width (B1): 24 mm
- Radius (r1,2 min.): 1 mm
- Radius (r3,4 min.): 0.5 mm
-
Load Ratings:
- Basic Dynamic Load Rating (C): 28.6 kN
- Basic Static Load Rating (C0): 33.5 kN
- Fatigue Load Limit (Pu): 3.9 kN
- Maximum Dynamic Radial Load (Fr max.): 17.6 kN
- Maximum Static Radial Load (F0r max.): 25 kN
-
Speed Rating:
- Limiting Speed: 3,800 rpm
-
Mass:
- 0.25 kg
This bearing is suitable for applications requiring high load capacity and durability, such as conveyor systems, material handling equipment, and other heavy-duty machinery.
Be the first who will post an article to this item!
Add a rating
INA Bearings - Reliability and Innovation for Every Application
INA bearings are known for their outstanding quality and reliability, making them the ideal solution for various industrial applications. This renowned manufacturer is part of the Schaeffler Group and offers a wide range of products that meet the highest quality standards. Whether you're looking for bearings for automotive, industrial machinery, or specialized applications, INA is a brand you can rely on.
Why Choose INA Bearings?
- High Quality: INA bearings are designed for maximum performance and long service life, minimizing maintenance and replacement costs.
- Innovative Technology: INA focuses on continuous development and integration of modern technologies to ensure excellent performance even in demanding conditions.
- Wide Portfolio: INA offers a variety of bearings, including ball, roller, needle, and more, designed for different applications.
Technical Specifications
INA bearings are engineered for a wide range of uses. Each bearing type is optimized for specific conditions, whether it's high loads, extreme temperatures, or high speeds. You can choose based on specifications such as diameter, width, material, and other technical parameters to ensure the bearings meet your exact needs.
Contact Us
If you're looking for INA bearings that meet your requirements, feel free to reach out to us. Our company offers high-quality products and expert advice to help you select the right bearing. We are ready to assist you with any questions regarding INA bearings and find the best solution for you.
Interested in INA bearings? Contact us and order today!
