Bearing QJ 219 N2 MPA FAG
Worldwide delivery
Best prices
Verified quality
Related products
Product detailed description

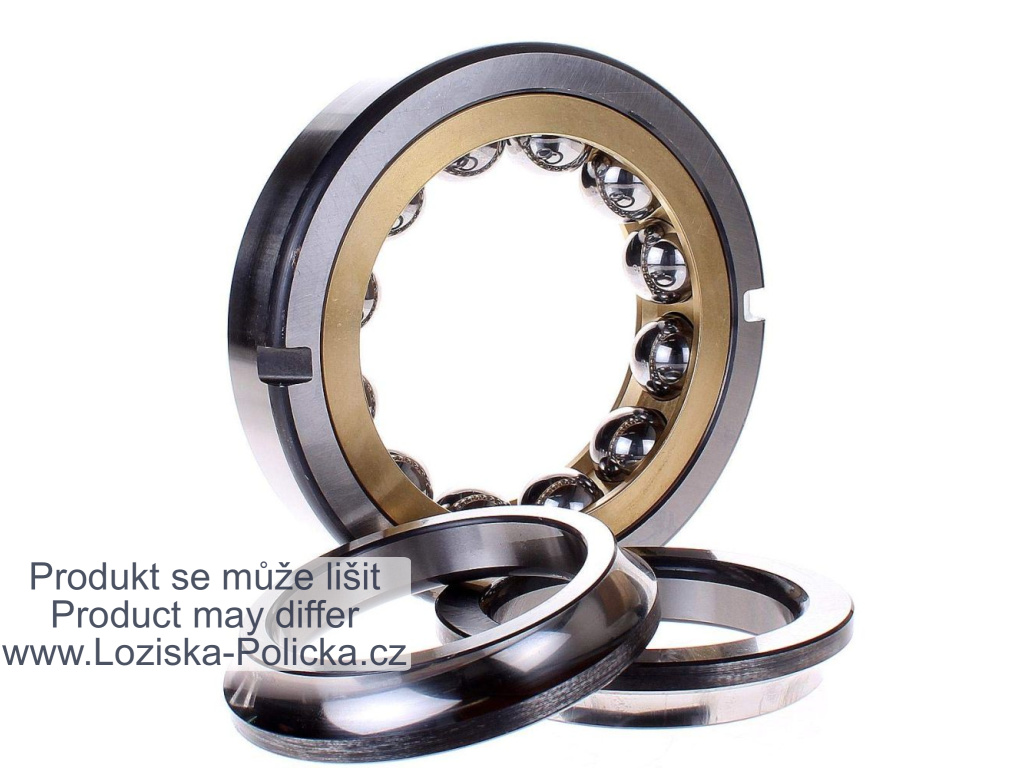

The FAG QJ219-N2-MPA is a four-point contact ball bearing engineered to accommodate axial loads in both directions. Its design includes a split inner ring and a solid brass cage, ensuring durability and efficient performance in various mechanical systems.
Technical Specifications:
-
Dimensions:
- Bore Diameter (d): 95 mm
- Outer Diameter (D): 170 mm
- Width (B): 32 mm
-
Design Features:
- Split inner ring for easy assembly and disassembly
- Solid brass cage (MPA) guided by the outer ring
- Two retaining grooves in the outer ring (N2) positioned 180° apart
-
Load Ratings:
- Basic Dynamic Load Rating (Cr): 190,000 N
- Basic Static Load Rating (C0r): 212,000 N
- Fatigue Load Limit (Cur): 10,400 N
-
Speed Ratings:
- Limiting Speed (nG): 7,000 rpm
- Reference Speed (nϑr): 3,700 rpm
-
Clearance and Tolerance:
- Internal Clearance: Normal (CN)
- Tolerance Class: Normal (PN)
-
Mounting Dimensions:
- Minimum Shaft Shoulder Diameter (da min): 107 mm
- Maximum Housing Shoulder Diameter (Da max): 158 mm
- Maximum Fillet Radius (ra max): 2.1 mm
- Minimum Chamfer Dimension (rmin): 2.1 mm
-
Material and Temperature Range:
- Material: Bearing steel
- Operating Temperature Range: -30°C to +150°C
This bearing is ideal for applications where axial loads occur in both directions and where space constraints are a concern, such as in gearbox engineering. Its robust construction and high load ratings make it a reliable choice for demanding mechanical systems.
