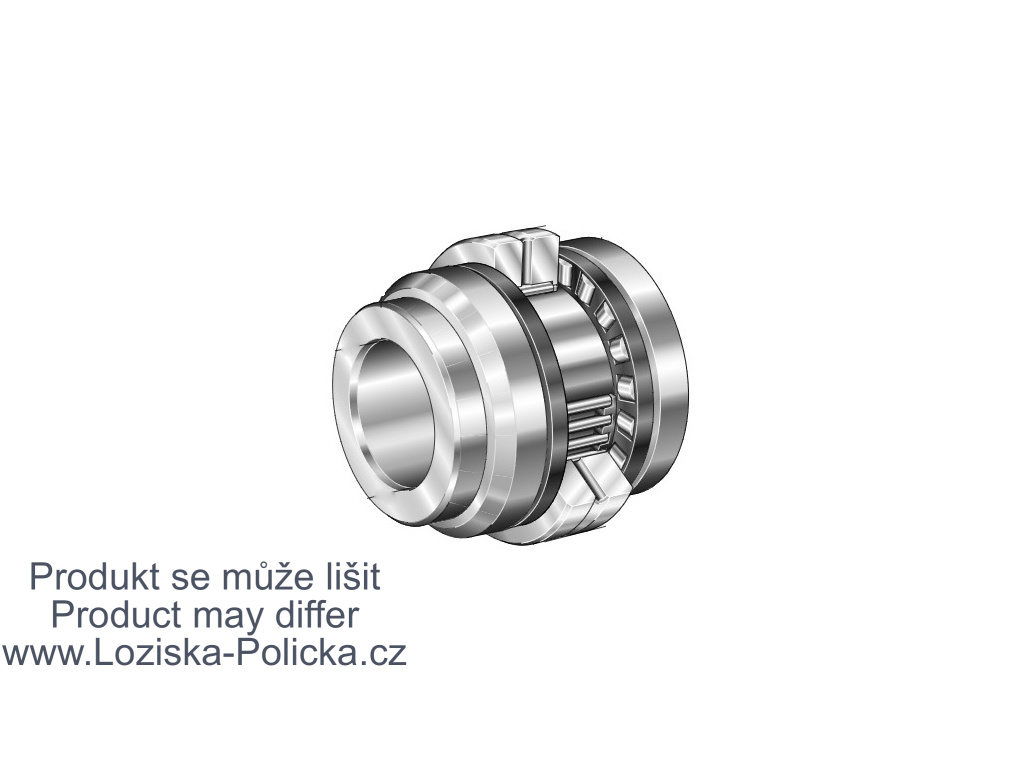

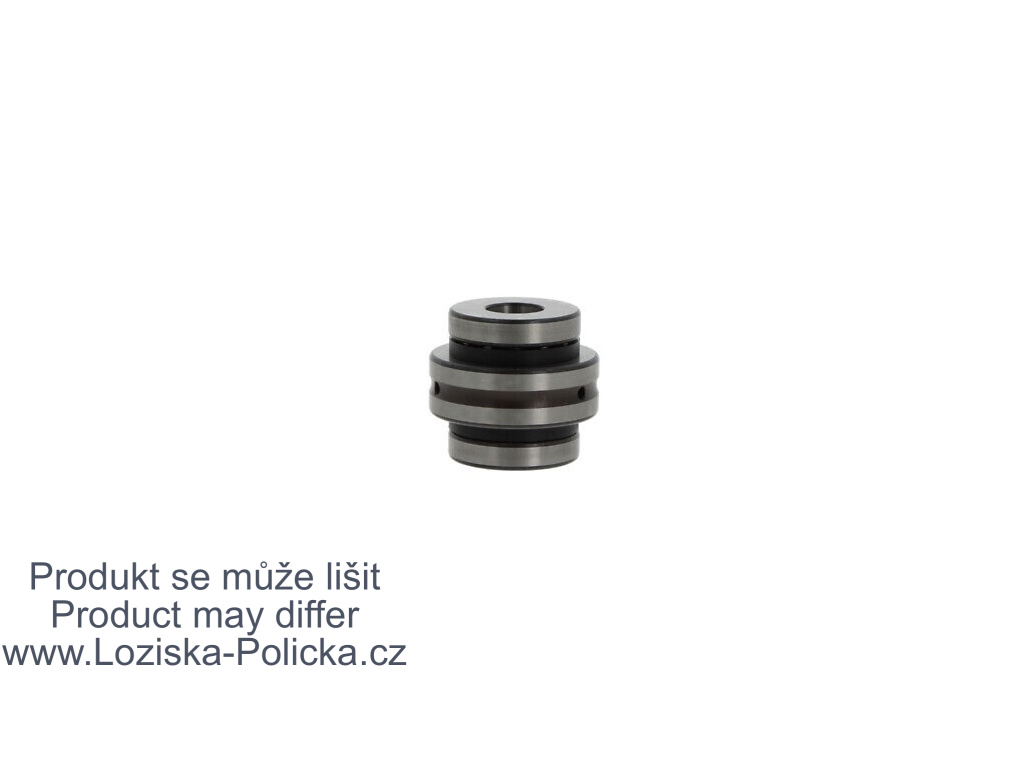

The INA ZARN 3570 L-TV-A is a high-precision combined bearing that integrates needle roller and axial cylindrical roller elements. This design offers exceptional load-carrying capacity and rigidity, making it suitable for demanding applications such as screw drives and linear motion systems.
Technical Specifications:
-

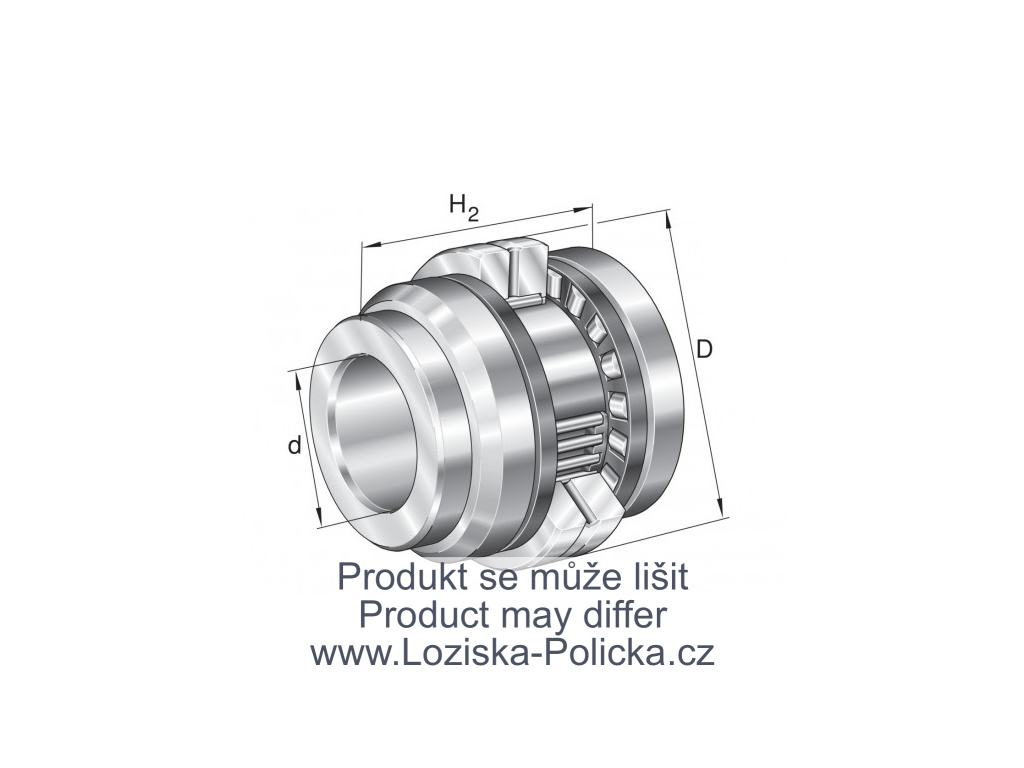

Dimensions:
- Bore Diameter (d): 35 mm
- Outer Diameter (D): 70 mm
- Width (H): 70 mm
-
Load Ratings:
- Dynamic Axial Load Rating (Ca): 56,000 N
- Static Axial Load Rating (C0a): 148,000 N
- Dynamic Radial Load Rating (Cr): 26,000 N
- Static Radial Load Rating (C0r): 47,000 N
-
Limiting Speeds:
- Oil Lubrication: 4,800 rpm
- Grease Lubrication: 1,700 rpm
-
Additional Features:
- Cage Material: Polyamide (PA66)
- Axial Rigidity (caL): 2,600 N/µm
- Tilting Rigidity (ckL): 740 Nm/mrad
- Mass Moment of Inertia for Rotating Inner Ring (Mm): 2.8 kg·cm²
- Recommended INA Locknuts: ZMA35/58 (radial) and AM35/58 (axial)
This bearing is engineered to provide high precision and durability, ensuring reliable performance in applications where space constraints and high load capacities are critical. Its robust construction and advanced materials make it a preferred choice for industries requiring high-performance bearing solutions.
