    Home / Industrial Components / Sleeves / Adapter sleeve H 2336 neu

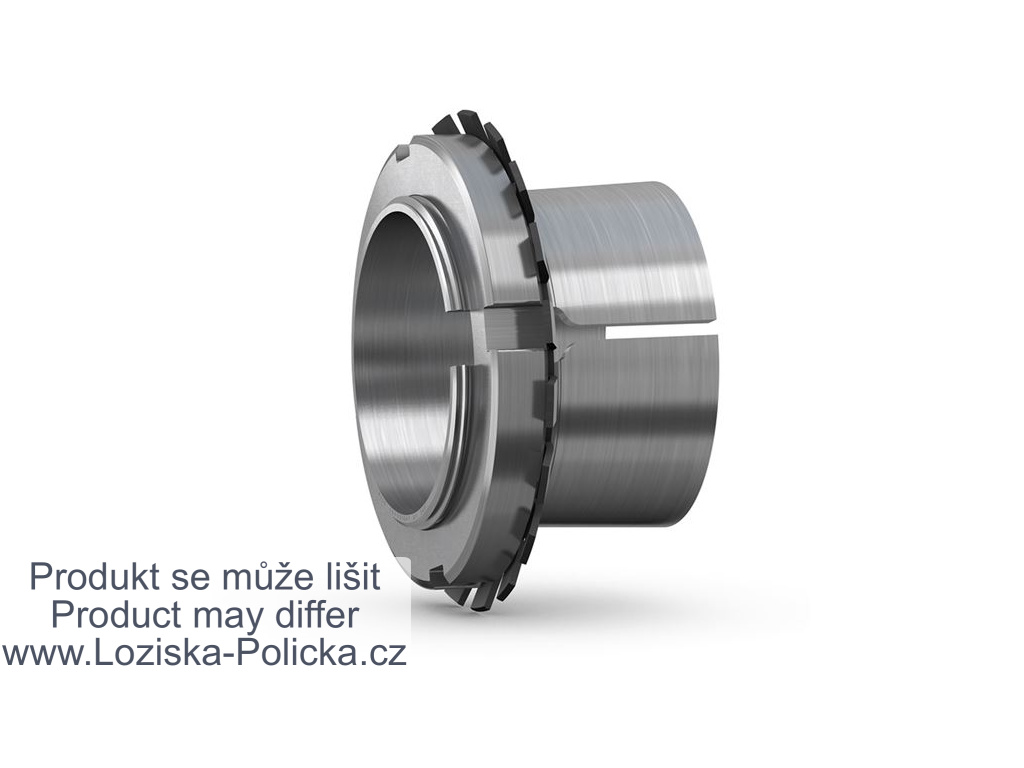

    Adapter sleeve H 2336 neu

    Not rated
    Brand: neu
    €230,11 –32 %
    1799313 1 pouzdro h 2336 neu
    €230,11 –32 % €155,82 / pcs €128,78 excl. VAT
    In stock (1 pcs)
    Delivery to:
    22/04/2025
    Delivery offer

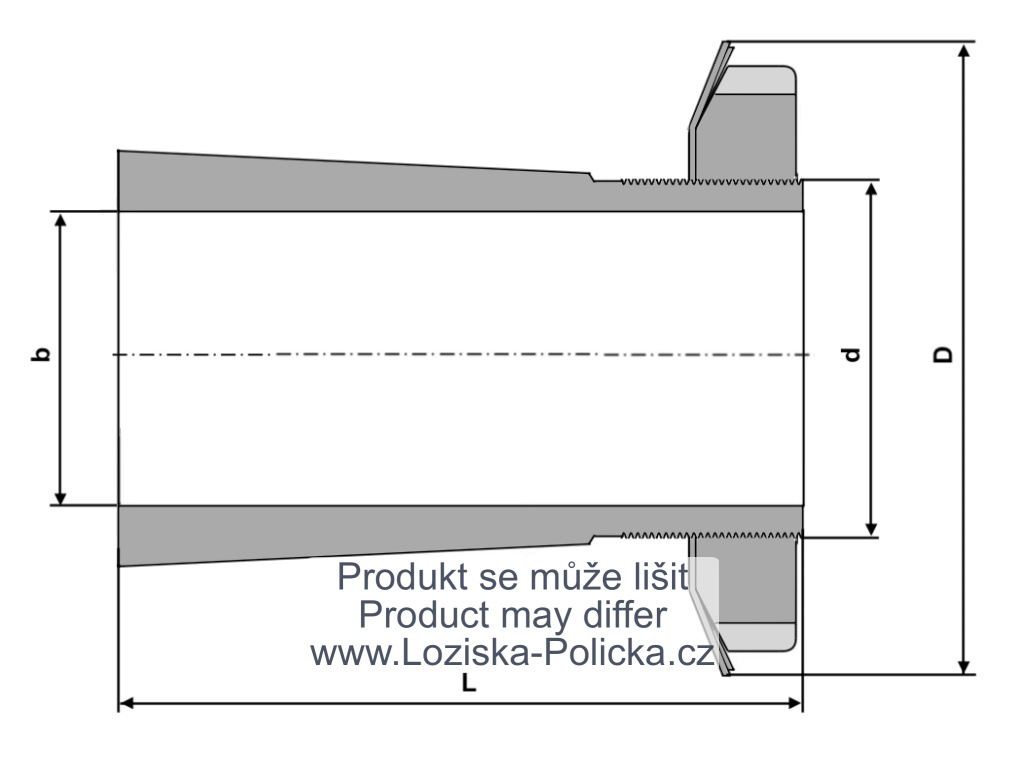

    d = M180x3 mm,
    D = 230 mm,
    L = 161 mm,
    b = 160 mm

    The H 2336 adapter sleeve is designed to securely mount bearings with a tapered bore onto cylindrical shafts. It features a bore diameter of 160 mm and includes a KM lock nut and MB lock washer for reliable fixation.

    Detailed information

    Worldwide delivery
    Worldwide delivery
    Best prices
    Best prices
    Verified quality
    Verified quality

    Related products

    1606812 1 pouzdro h 3132 skf
    Adapter sleeve H 3132 SKF
    On request
    €434,74 excl. VAT
    €526,03

    d = M160x3 mm,D = 210 mm,L = 119 mm,b = 140 mm

    H 3132 SKF
    1566488 1 pouzdro ah3138 fag
    Withdrawal sleeve AH3138 FAG
    On request
    €655,40 excl. VAT
    €793,04

    D = Tr210x4 mm,d = 180 mm,L = 125 mm

    AH3138 FAG
    228377 pouzdro h 2322
    Adapter sleeve H 2322
    On request
    €30,80 excl. VAT
    €37,27

    d = M110x2 mm,D = 145 mm,L = 105 mm,b = 100 mm

    H 2322
    1569929 1 pouzdro h2352 x fag
    Adapter sleeve H2352-X FAG
    On request
    €2 592,88 excl. VAT
    €3 137,39

    d = Tr260x4 mm,D = 330 mm,L = 211 mm,b = 240 mm

    H2352-X FAG
    1606929 1 pouzdro ha 3136 skf
    Adapter sleeve HA 3136 SKF
    On request
    €671,40 excl. VAT
    €812,40

    d = M180x3 mm,D = 230 mm,L = 131 mm,b = 163.513 mm

    HA 3136 SKF
    1605576 pouzdro ahx 2324 g skf
    Withdrawal sleeve AHX 2324 G SKF
    On request
    €258,93 excl. VAT
    €313,31

    D = M130x2 mm,d = 115 mm,L = 105 mm

    AHX 2324 G SKF
    1569995 1 pouzdro h3160 skf
    Adapter sleeve H3160 SKF
    On request
    €2 752,29 excl. VAT
    €3 330,27

    d = Tr300x4 mm,D = 380 mm,L = 208 mm,b = 280 mm

    H3160 SKF
    1606815 1 pouzdro h 3134 skf
    Adapter sleeve H 3134 SKF
    On request
    €487,74 excl. VAT
    €590,16

    d = M170x3 mm,D = 220 mm,L = 122 mm,b = 150 mm

    H 3134 SKF
    1569971 1 pouzdro h3060 skf
    Adapter sleeve H3060 SKF
    On request
    €2 436,84 excl. VAT
    €2 948,58

    d = Tr300x4 mm,D = 360 mm,L = 168 mm,b = 280 mm

    H3060 SKF
    1605579 1 pouzdro ahx 2324 110 skf
    Withdrawal sleeve AHX 2324/110 SKF
    On request
    €415,83 excl. VAT
    €503,16

    D = M135x2 mm,d = 110 mm,L = 105 mm

    AHX 2324/110 SKF
    1795011 1 pouzdro h 2344 skf
    Adapter sleeve H 2344 SKF
    On request
    €1 736,03 excl. VAT
    €2 100,60

    d = Tr220x4 mm,D = 292 mm,L = 186 mm,b = 200 mm

    H 2344 SKF
    1566494 1 pouzdro ah3140 h fag
    Withdrawal sleeve AH3140-H FAG
    On request
    €1 095,76 excl. VAT
    €1 325,87

    D = Tr220x4 mm,d = 190 mm,L = 134 mm

    AH3140-H FAG
    1566533 1 pouzdro ahx3130 g skf
    Withdrawal sleeve AHX3130 G SKF
    On request
    €394,75 excl. VAT
    €477,65

    D = M160x3 mm,d = 145 mm,L = 96 mm

    AHX3130 G SKF
    1566437 1 pouzdro ah24034 skf
    Withdrawal sleeve AH24034 SKF
    On request
    €650,65 excl. VAT
    €787,29

    D= M180x3 mm,d = 160 mm,L = 106 mm

    AH24034 SKF
    1569932 1 pouzdro h2352 skf
    Adapter sleeve H2352 SKF
    On request
    €2 369,63 excl. VAT
    €2 867,25

    d = Tr260x4 mm,D = 330 mm,L = 211 mm,b = 240 mm

    H2352 SKF
    1794936 1 pouzdro h 3052 skf
    Adapter sleeve H 3052 SKF
    On request
    €1 392,97 excl. VAT
    €1 685,49

    d = Tr260x4 mm,D = 310 mm,L = 145 mm,b = 240 mm

    H 3052 SKF
    Show all related products Previous product Next product

    Product detailed description

    The H 2336 adapter sleeve is a precision-engineered component used to mount bearings with a tapered bore onto cylindrical shafts. It is particularly suitable for applications requiring secure and precise bearing positioning.

    Key Features:

    • Bore Diameter: 160 mm
    • Length: 161 mm
    • Thread Designation: M180x3
    • Taper: 1:12
    • Locking Components: Supplied with KM36 lock nut and MB36 lock washer
    • Weight: Approximately 10.8 kg

    Applications:

    • Mounting spherical roller bearings with a tapered bore onto cylindrical shafts
    • Suitable for both plain and stepped shafts
    • Commonly used in industrial machinery and equipment requiring precise bearing alignment

    This adapter sleeve ensures easy installation and reliable fixation of bearings, contributing to the overall performance and longevity of the machinery.
