Product detailed description

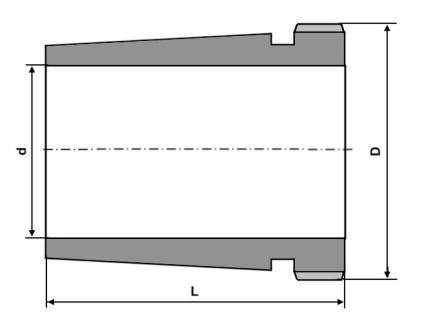

The SKF AOH 24084 withdrawal sleeve is engineered to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. This sleeve is particularly useful for oil injection mounting and dismounting, providing a cost-effective solution with controlled mounting and dismounting processes.
Technical Specifications:
- Bore Diameter (d₁): 400 mm
- Outside Diameter (d): 420 mm
- Width (B₁): 230 mm
- Thread Designation (G): Tr 440x5
- Thread Length (G₁): 30 mm
- Oil Supply Duct Thread (G₂): G 1/4
- Distance from Bore to Oil Supply Duct (A): 9 mm
- Taper: 1:30
- Weight: 29 kg
- Lock Nut: HM 3188
- Hydraulic Nut: HMV 88 E
- Associated Bearing: 24084K
The sleeve is located on the shaft by a lock nut or an end plate. The lock nuts and appropriate locking devices can be ordered separately. End plates are not manufactured by SKF.
